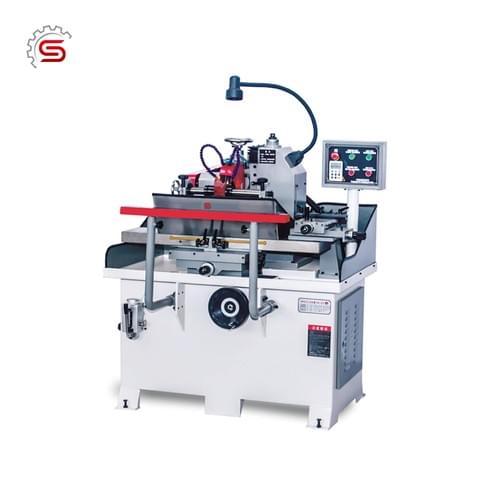

■High-precision rolling guide,the worktable vertical and horizontal movement is flexible and high precision,cutter with accurate shape and sharp edge after processed.

■Grinding wheelhead angle adopt fine adjustment method,data accuracy is maintained well.blade grinding adopt worm lift,light weight,flexible,simple operation and rapidly.



Specification
Cutter Reat Stroke 300mm
Grinding wheel adjustable Angle ±45℃
Cutter rest turning diameter 355mm
Main Spindle Shuttle Distance 100mm
Grinding wheel install size ¢32×¢205mm
Main electric motor power 2.2kw
Grinding wheel rotate speed 4500/10000
