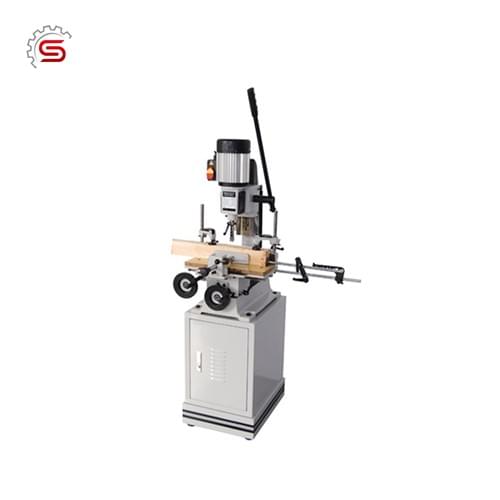

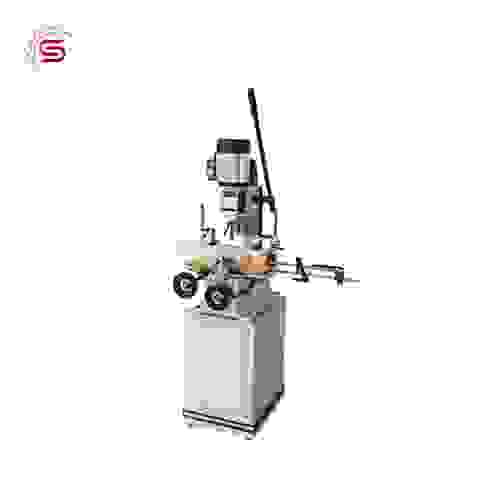

Model MS3840
Motor power 1hp/0.75kw
Spindle speed 1400(50Hz),1720(60Hz)rpm
Chisel capacity 6-26mm(1/4''-1'')
Max.Mortising Depth 76mm
Max.Chisel Travel 210mm
Chuck capacity 3-16mm
Table lateral movement 320mm
Table longitudinal movement 145mm
Table size 400x150mm
Chisel to Table(max) 210mm
Spindle to Fence(max) 140mm
Over height 1720mm
Main machine dimension 560x460x820mm
Stand dimension 500x400x630mm
G.W/N.W of machine 113kg/108kg
G.W/N.W of stand 8kg/16kg
Units/20' Container 83
